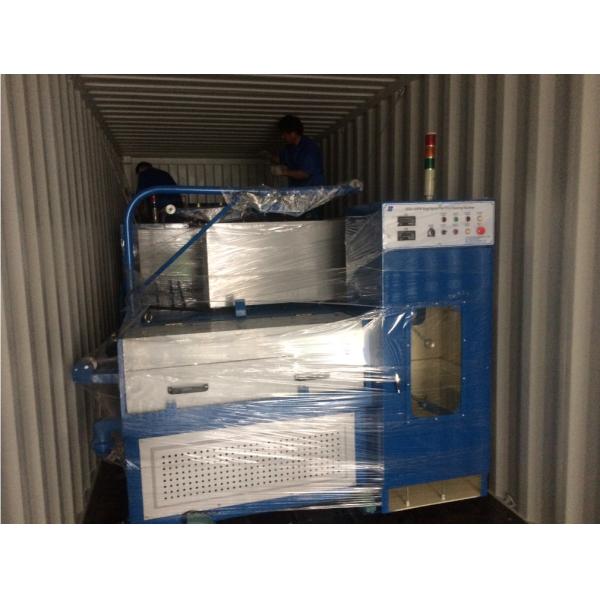

Customized HXE-26 DW Fine copper wire drawing machine

I. Quick description

Customized HXE-26DW is used to draw single bare copper wire from 0.8-1.65mm to 0.12-0.35mm

II. Components

III. Specifications

1. Inlet wire diameter:0.8-1.65mm
2. Outlet wire diameter:0.12-0.35mm
3. Speed:2000mpm
4. Dies number:26
5. Slip ratio (Area reduction) : No.1 -No.25 / 13%; No.26 / 8%
Elongation, no annealing, 1%-2%, After annealing, 17%-25%. Tensile strength 200-300 MPa
6. Wire drawing mode:horizontal-mode and 4 axes
7. Driver: by dual Inverters control, Brand: Inovance,Chinese famous brand, 15kw+3.7kw.
8. Main motor: 15KW AC 3 phase motor
9. Spooler motor:3.7KW AC 3 phase motor
10. Motor brand: Wan Nan motor, China classical brand
11. Capstan:steel with ceramic coating,
12. Max capstan diameter:242mm
13. Max fix speed capstan:207mm
14. Machine structure:cast iron
15. Reverse system: PID synchronous control spool
16. Transmission: by Flat belts+timing belt
17. Pay-off method: over-head
18. Tension control:weight balance by swing arm
19. Lubrication type: spray, Grade 2.5%-3%, Capacity 40L/min,
Lubrication tank: L1000mm*W500mm*H600mm
20. Bobbin size: 300mm, material steel, 17kg.
21. Take up: shaft type
22. Bobbin capacity:50-60kg/max
23. Brake: Pneumatic brake
24. Power source: customize
25. Machine dimension: L2235mm*W1575mm*H1590mm, Machine weight: 2000KG

IV. Advantage and after-sale service

A: Advantage

(1). HENGXIE has some world famous parts suppliers,has special lubrication system for the gears and bearing.
(2). Body and other key components and parts are produced by our own factory , quality is reliable.
(3). Our company’s developing process in more than 10 years.

B: After-sale service

Our company for all machine product, since the shipment date, our company free after sale maintenance service guarantee period is:
(1) 1 year for mechanical part.
(2) 6 month for electrical part.

V. Structure features.

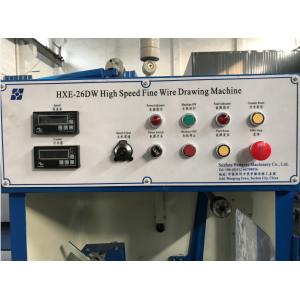

1. Power control: The speed of main motor is controlled by inverter ,adjusted range from 0-2500MPM ,the line speed is shown on the monitor. Spooler motor has it's own transducer in order to control the stabilization of the tension and keep the same size of the wire.

2. Wire drawing :Horizontal and continuous drawing.

3. Transmit:All by flat straps

4. Automatic stop: wire broken off to protect brake.

5. All accessories are used high quality and special materials. E.g,capstan are ceramic plasma ,the bearing is NSK made is Japan,all straps are imported, anti-static ,long life design.Electric motor is Wannan Motor, made in China, domestic famous brand. Inverter is Innvoce brand,made in Shenzhen City,China.

      Suzhou Hengxie Machinery Co., Ltd was established in 2005, a total professional in drawing machine field, specialized in copper and aluminium wire drawing machines. Located in Suzhou City, very close to Shanghai, we share a convenient transportation and the most successful working environment.

Our 6,700 square meters of land allows producing a wide range of equipment, developing and researching new products. We always strive to introduce the latest international techniques to update our products.

With management concept of “Excellent quality, Reasonable prices, Superior services”, our hope is to not only meet our customers` expectations but to exceed them.

Here are the machines we have: Copper&Aluminium Rod Breakdown machine, Large and intermediate wire drawing machine with online annealer, Intermediate wire drawing machine, Intermediate wire drawing machine with online annealer, Fine wire drawing machine, Fine wire drawing machine with online annealer, Customized fine wire drawing machine with annealer, Super fine wire drawing machine. As long as we talk, we can always meet your detail requirements.

Our market includes both domestic and overseas. Such as Bangladesh, Egypt, Iran, Malaysia, Syria, Algeria, Kenya, Turkey, South Africa, Latin America and so on.

With the concept of “Stable quality and mutual development”, Hengxie welcome all customers from the world to create a sincere cooperation and win-win benefit in the future.
