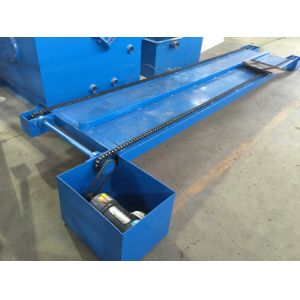

HXE-WF750 Coiler for Intermediate copper wire drawing machine

I. Main technical parameter

1. Applicable diameter 0.4mm-1.6mm

2. Motor AC 15kw, Speed 1200m/min, adjustable

3. Coiler basket size 750mm

4. Small electric cabinet, 1 set, to connect with the drawing machine control system

5. Tension device required, if your drawing machine has Tension device, then no need.

6. Traverse motor AC 1.5kw

7. Speed reduction motor 90w

8. Speed control by Inverter 15kw

9. Air compressor shall be needed during working

10. Basket changing system is equipped

11. Basket block device is equipped

11. All ladders and blockers (Yellow parts) (Screws to fix) will be removed before shipping

12. The down half part of the Coiler will be removed before shipping

13. Needs connection wires from the Coiler to the drawing machine control system

II. Application

WF750 Coiler for intermediate copper wire drawing machine is used to take up wire from 0.4mm-1.6mm.

III. Working Environment

3-1.Not more than 1000 meters above sea level.

3-2.Temperature －10℃－40℃

3-3.Relative temperature does not exceed 85% (25 ℃)

IV. Working Condition

4-1.Maximum air consumption 0.3 cubic meter per minute

4-2.Compress air capacity 225L

4-3.Air pressure 0.4Mpa

4-4.Cooling tank capacity 225L

4-5.Steam capacity 2kg/hour

4-6.Steam pressure 0.2-0.3Mpa

V. Advantage and after-sale service

A: Advantage

(1). HENGXIE has some world famous parts suppliers, has special lubrication system for the gears and bearing.

(2). Body and other key components and parts are produced by our own factory , quality is reliable.

(3). Our company’s developing process in more than 10 years.

B: After-sale service

Our company for all machine product, since the shipment date, our company free after sale maintenance service guarantee period is:

(1) 1 year for mechanical part.

(2) 6 month for electrical part.

VI. Machine maintenance and precautions

1. Make sure the machine and the capstans clean, no scrap, no break wire.

2. Make sure the Take-up part clean.

3. Electrical cabinet should be closed.

4. Change belts if worn out.

5. Only qualified electrical technician can repair the electrical part.

6. Never change the Inverter parameter.

7. If something wrong with the machine that can`t solve, please contact the supplier first.

Do not open the machine without consulting to the supplier.

8. Put lubrication oil to the parts regularly, to make sure all parts running fluently. After running 1000 hours, clean all the bearings.

9. Annealed nickel belt and Annealing carbon brush are consuming parts. If spark happens a lot on the annealing capstans, then should change the nickel belt. If the carbon is going to run out, then need to change a new set.

      Suzhou Hengxie Machinery Co., Ltd was established in 2005, a total professional in drawing machine field, specialized in copper and aluminium wire drawing machines. Located in Suzhou City, very close to Shanghai, we share a convenient transportation and the most successful working environment.

Our 6,700 square meters of land allows producing a wide range of equipment, developing and researching new products. We always strive to introduce the latest international techniques to update our products.

With management concept of “Excellent quality, Reasonable prices, Superior services”, our hope is to not only meet our customers` expectations but to exceed them.

Here are the machines we have: Copper&Aluminium Rod Breakdown machine, Large and intermediate wire drawing machine with online annealer, Intermediate wire drawing machine, Intermediate wire drawing machine with online annealer, Fine wire drawing machine, Fine wire drawing machine with online annealer, Customized fine wire drawing machine with annealer, Super fine wire drawing machine. As long as we talk, we can always meet your detail requirements.

Our market includes both domestic and overseas. Such as Bangladesh, Egypt, Iran, Malaysia, Syria, Algeria, Kenya, Turkey, South Africa, Latin America and so on.

With the concept of “Stable quality and mutual development”, Hengxie welcome all customers from the world to create a sincere cooperation and win-win benefit in the future.
