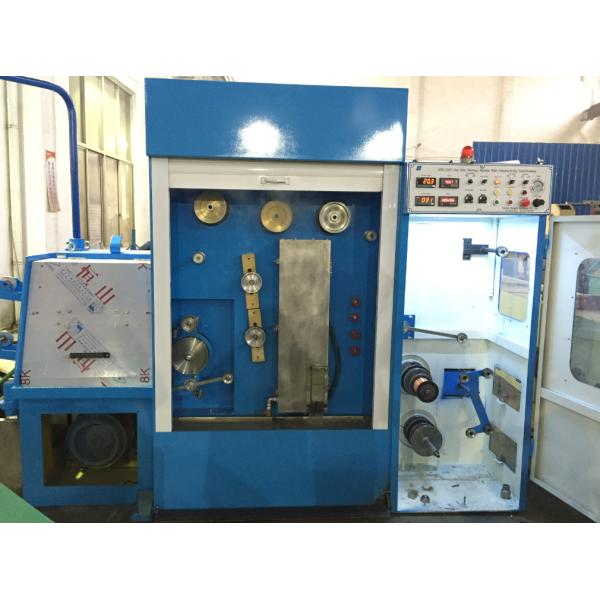

HXE-22DT copper fine wire drawing machine with Annealer & Double
spoolers
I. Application
22DT copper fine wire drawing machine with annealer & double
spoolers is used to draw and annealing single bare copper wire from
0.8mm-1.4mm to 0.1mm-0.6mm.
II. Components
| Name | Quantity |
| 1. Pay-off shelf | 1 set |
| 2. HXE-22DT Drawing&Annealing machine | 1 set |
| 3. Electrical control system | 1 set |
| 4. Steam generator | 1 set |
| 5. Lubrication Tank and Pump | Optional |
| 6. Spare parts | As per List |
| 7. Operation Manual, Inverter Manual |
III. Main Technical parameters
1. Usage single bare copper wire drawing and annealing
2. Inlet size Ф0.8mm-Ф1.4mm
3. Outlet size Ф0.1mm-Ф0.6mm
4. Machine speed/max 1500m/min
5. Die number 22, Dies size 25mm×8-10mmT, Slip ratio 15.5%+8%
6. Wire drawing mode standing-mode and 4axes
7. Drive: by Inverter control, Brand Inovance, Chinese famous
brand.
8. Main motor 15KW, Spooler motor 5.5KW*1set/2sets
9. Annealing voltage DC55V/max
10. Annealing current DC600A/max
11. Annealing power 33KVA
12. Annealing method D.C three-section annealer
13. Quantity of steam 8kg/h
14. Capacity of compressed air 0.4-0.6Mpa,15L/min
15. Demand Water quantity for annealing and coolant 150L/min
16. Machine frame welded by steel plate
17. Transmission By Timing belts
18. Capstan ceramic plasma
19. Lubricating system Spray
20. Bobbin size 300mm, loading capacity :50kg/max (Can be
customized)
21. Bobbin loading &unloading type shaft type
22. Traversing unit 110W synchros motor, width: 270mm/max
23. Bobbin controlling Fixed by Screw
24. Brake 20KG-M magnetic brake

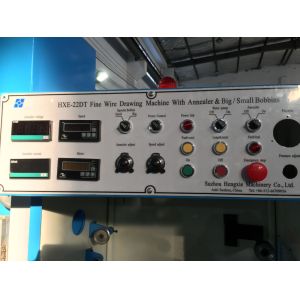

25. Operation panel &control cabinet 1000×800×1800mm
26. Machine dimension 2100mm*1600mm*1700mm
27. Machine weight 3200KG
IV. Operating procedures
4-1.Open power switch
4-2.According to the wire diameter, choose the dies (Check the die
list).
4-3.Use pliers to break the wire to get a smaller section.
4-4.Use pliers to make the wire through the dies, then pull the
wire out (Use foot switch to make the machine running in a low
speed to make the wire move).
4-5.Wire direction, please check the Drawing for Wire path.
4-6.After make the wire through all the parts, close the annealing
door and the spooling door, make the tension swing arm in the
lowest position. and in running, the balance arm should be in the
horizontal line. No big shake, no up and down frequently.
4-7.Open the Annealing switch, open the Pump, open and adjust the
Drawing lubrication oil, Cooling water, Steam, Compressed air.
4-8.Set the length meters, then press the Start button to start the
machine.
Advantage and after-sale service
A: Advantage
(1). HENGXIE has some world famous parts suppliers, has special
lubrication system for the gears and bearing.
(2). Body and other key components and parts are produced by our
own factory , quality is reliable.
(3). DC. three-section annealing
(4). Our company’s developing process in more than 10 years.
B: After-sale service
Our company for all machine product, since the shipment date, our
company free after sale maintenance service guarantee period is:
(1) 1 year for mechanical part.
(2) 6 month for electrical part.
Under these situation mentioned, the Seller will not take
responsibility, but if the Buyer agree, will charge fees
accordingly to repair the machine.
1. Due to wrong operation while shipping.
2. Due to Buyer`s wrong preparation that may cause damage to the
machine.
3. Due to Buyer`s wrong operation that may cause damage to the
machine.
4. Not in the consuming part list.
5. After agreement are made for the shipping, for any damage, Buyer
should inform Seller in letter form to repair in seven days, If
beyond the dare, Seller shall take no responsibility.
6. For any other failures due to acts of God (such as lightning,
typhoon, earthquake, riots, war, fire or flood) and other factors
that will cause damage, Seller shall take no responsibility.
7. Seller guarantee provide long term support regarding the parts
and teach. After warranty, will charge accordingly.
