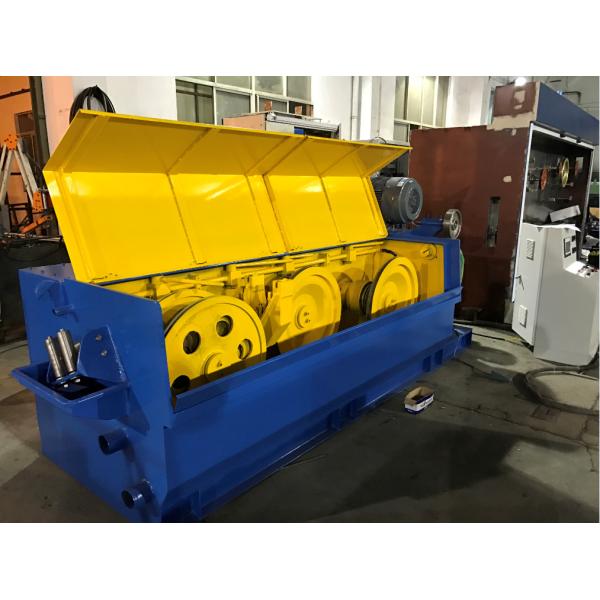

HXE-13DLA Aluminium rod breakdown machine with Annealer , Double spoolers

I. Quick details

HXE-13DLA Aluminium rod breakdown machine with annealer is used to draw and anneal single bare aluminium wire from 9.5mm to 1.7mm-4.2mm.

II. Component

III. Parameter

1. Inlet wire diameter 9.5mm

2. Outlet wire diameter 1.7mm-4.2mm

3. Actual drawing & annealing speed 800m/min

4. Number of Dies 13

5. Drum speed ratio 1.25

6. Capstan Iron cast, With Tungsten Carbide surface, 650mm, 4 pieces

7. Machine frame Welded

8. Main motor AC 75KW, Fix speed motor 22KW

9. Spooler motor AC 11KW

10. Inverter Inovance Brand

11. Speed adjust by Inverters

12. Transmission by Gear&Triangle Belts

13. Cantilever type pay-off shelf

14. Free rod type traversing

15. Power source customized

16. Annealing voltage 60V

17. Annealing current 3000A

18. Annealing power 180KVA

19. Annealing type D.C. Three section annealing

20. Annealing speed control by Inverters , auto tracking the drawing speed

IV. Shipping & Installation

Shipping

There are two lifting rings on the drawing machine, four on then annealing machine.

Installation (See attached drawing)

According to the drawing, make the foundation.

When machine is in position, install bolts and adjust the center line.

When concrete is drying, adjust center line again and fix the bolts.

Adjust

Before adjusting, check and clean all parts.

V. Advantage and after-sale service

After-sale service

Warranty: after shipping, machine part one year, electrical parts six months

Under these situation mentioned, the Seller will not take responsibility, but if the Buyer agree, will charge fees accordingly to repair the machine.

A. Due to wrong operation while shipping.

B. Due to Buyer`s wrong preparation that may cause damage to the machine.

C. Due to Buyer`s wrong operation that may cause damage to the machine.

D. Not in the consuming part list.

E. After agreement are made for the shipping, for any damage, Buyer should inform Seller in letter form to repair in seven days, If beyond the dare, Seller shall take no responsibility.

F. For any other failures due to acts of God (such as lightning, typhoon, earthquake, riots, war, fire or flood) and other factors that will cause damage, Seller shall take no responsibility.

G. Seller guarantee provide long term support regarding the parts and teach. After warranty, will charge accordingly.
