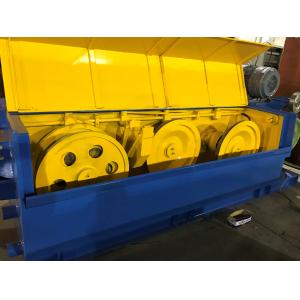

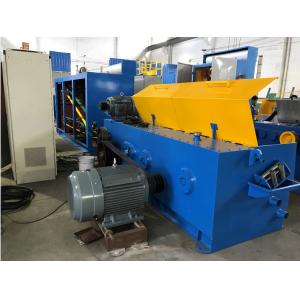

13 DLA Copper Rod Breakdown Machine with annealer

I. Quick Details

HXE-13DLA Copper rod breakdown machine with annealer is used to draw and anneal single bare copper wire from 8.0mm to 1.4mm-4.0mm.

II. Parameter

1. Inlet wire diameter 8.0mm
2. Outlet wire diameter 1.4mm-4.0mm
3. Line speed 500m/min;
4. Number of Dies 13
5. Drum speed ratio 1.25
6. Capstan Iron cast, With Tungsten Carbide surface, 650mm, 4 pieces
7. Machine frame Welded
8. Main motor AC 132KW
9. Spooler motor AC 15KW
10. Coiler motor AC 11KW
11. Inverter Inovance Brand
12. Speed adjust by Inverters
13. Transmission by Gear&Triangle Belts
14. Cantilever type pay-off shelf
15. Free rod type traversing
16. Power source customized
17. Annealing voltage 50V
18. Annealing current 2500A
19. Annealing power 125KVA
20. Annealing type D.C. Two section annealing
21. Annealing speed control by Inverters , auto tracking the drawing speed

III. Components

IV. Machine structure

Annealing method is DC Three section annealing, there are three contact capstans, as Pre-Heating, Annealing and Drying. For drawing machine part, there is belts that connection from the Fix-speed capstan to the Annealer machine to achieve the transmission, as keep same speed.

Connect the Up capstan and Down capstan with Positive and Negative power, to make the wire in a short circuit, to achieve the heating.

There is annealing plate to auto track and adjust the speed and annealing voltage.

To achieve fast coolant to make the wire soft(Annealing), the Down capstan is immersed into the coolant water(There is a water tank in the bottom of the Annealer machine), coolant water with 0.5% anti-oxidation. With the Pump to pump the coolant water through all pipes and valves, half sealed annealing door. Adjust the valves to adjust the coolant water in certain height.

To make sure the wire no oxidation, in the annealing protection pipe has steam (Buyer self will prepare Steam generator).

In the drying section, has a blowing device (Require two dies, Buyer self prepare), by compressed air (Buyer self prepare Air compressor) to blow the water on the surface of the wire.

V. Advantage and after-self service
A: Advantage
(1). HENGXIE has some world famous parts suppliers, has special lubrication system for the gears and bearing.
(2). Body and other key components and parts are produced by our own factory , quality is reliable.
(3). Our company’s developing process in more than 10 years.

B: After-self service
Our company for all machine product, since the shipment date, our company free after sale maintenance service guarantee period is:
(1) 1 year for mechanical part.
(2) 6 month for electrical part.

Under these situation mentioned, the Seller will not take responsibility, but if the Buyer agree, will charge fees accordingly to repair the machine.

1. Due to wrong operation while shipping.
2. Due to Buyer`s wrong preparation that may cause damage to the machine.
3. Due to Buyer`s wrong operation that may cause damage to the machine.
4. Not in the consuming part list.
5. After agreement are made for the shipping, for any damage, Buyer should inform Seller in letter form to repair in seven days, If beyond the dare, Seller shall take no responsibility.
6. For any other failures due to acts of God (such as lightning, typhoon, earthquake, riots, war, fire or flood) and other factors that will cause damage, Seller shall take no responsibility.
7. Seller guarantee provide long term support regarding the parts and teach. After warranty, will charge accordingly.
