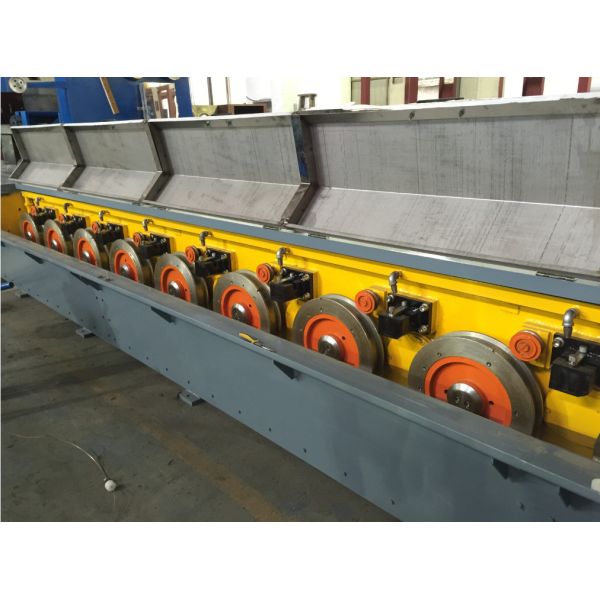

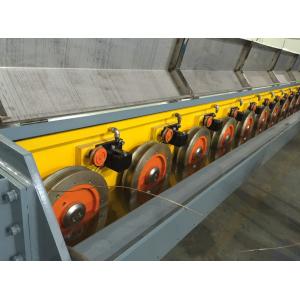

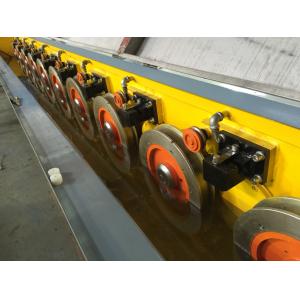

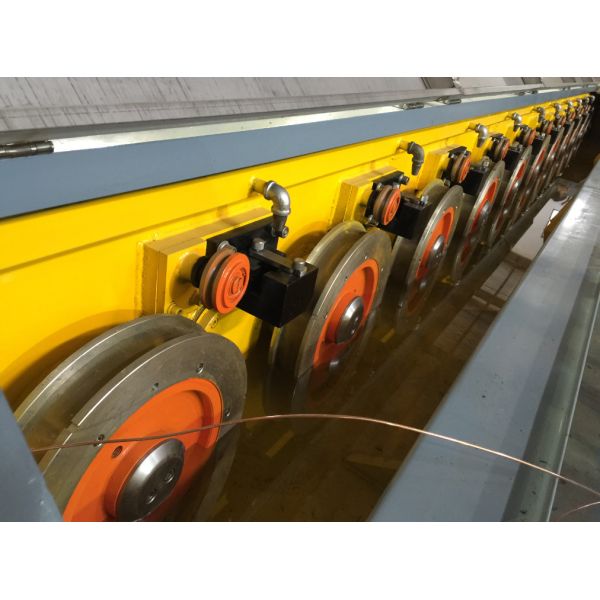

HXE-400/13DL Copper rod breakdown machine with annealer

I. Application

HXE-400/13DL Copper rod breakdown machine with annealer is used to draw and anneal single bare copper wire from 8mm to 1.2mm-3.5mm.The drawing capstans are arranged in a line that are able to work continuously with drawing speed and electrical control can be matched with each other.

II. Compositions of equipment

III. Main technical parameters

IV. Advantage and after-self service

A: Advantage

(1). HENGXIE has some world famous parts suppliers, has special lubrication system for the gears and bearing.

(2). Body and other key components and parts are produced by our own factory , quality is reliable.

(3). DC. three-section annealing

(4). Our company’s developing process in more than 10 years.

B: After-self service

Our company for all machine product, since the shipment date, our company free after sale maintenance service guarantee period is:

(1) 1 year for mechanical part.

(2) 6 month for electrical part.

V. Operating procedures

5-1. Open power switch

5-2. According to the wire diameter, choose the dies (Check the die list).

5-3. Use pliers to break the wire to get a smaller section.

5-4. Use pliers to make the wire through the dies, then pull the wire out (Use foot switch to make the machine running in a low speed to make the wire move).

5-5. Wire direction, please check the Drawing for Wire path.

5-6. After make the wire through all the parts, close the annealing door and the spooling door, make the tension swing arm in the lowest position. and in running, the balance arm should be in the horizontal line. No big shake, no up and down frequently.

5-7. Open the Annealing switch, open the Pump, open and adjust the Drawing lubrication oil, Cooling water, Steam, Compressed air.

5-8. Set the length meters, then press the Start button to start the machine.
