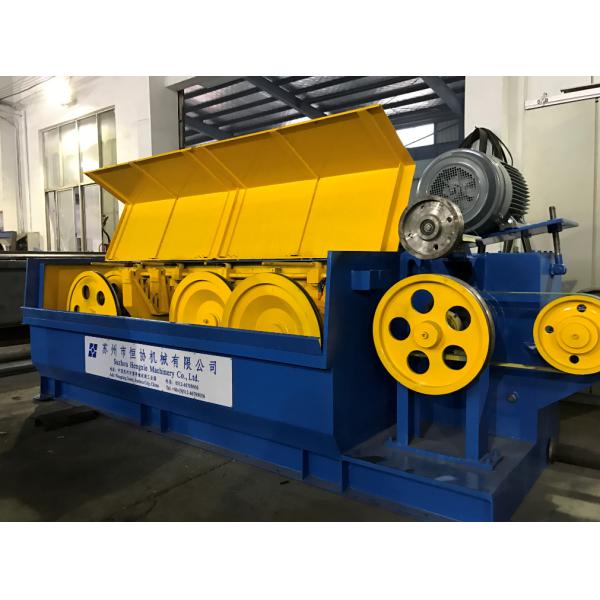

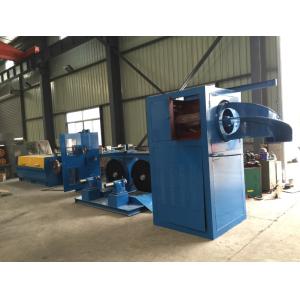

13 DLA Copper Rod Breakdown Machine with annealing

I. Quick Description

HXE-13DLA Copper rod breakdown machine with annealer is used to draw and anneal single bare copper wire from 8.0mm to 1.4mm-4.0mm.

II. components

III. Parameter

1. Inlet wire diameter 8.0mm. Outlet wire diameter 1.4mm-4.0mm. Line speed 500m/min; Number of Dies 13. Drum speed ratio 1.25. Capstan Iron cast, With Tungsten Carbide surface, 650mm, 4 pieces. Machine frame Welded.

2. Main motor AC 132KW. Spooler motor AC 15KW. Coiler motor AC 11KW. Inverter Inovance Brand. Speed adjust by Inverters. Transmission by Gear&Triangle Belts. Cantilever type pay-off shelf. Free rod type traversing.

2. Power source customized. Annealing voltage 50V. Annealing current 2500A. Annealing power 125KVA
Annealing type D.C. Two section annealing. Annealing speed control by Inverters , auto tracking the drawing speed

IV. Operation & Maintenance

4-1. Preparation before running

Check all the lubrication parts of the transmission parts.

Check Wire-break Auto stop device, Safety doors.

Check coolant water, Lubrication oil, Steam, Compressed air.

After checking, jogging machine as lower than 5m/s, check all parts again.

4-2. Operation

Connect power.

Prepare the drawing dies.

Prepare the wire pointing and threading.

According to the die list, place the wires on the capstan, wire goes through each layer 2-3 times.

Put wire through the fix speed capstan then through the annealer machine

Annealer machine wire path, please check the Wire path drawing on the machine.

Then put wire through the Wire passing wheels, Tension device, Spooler machine.

After the wire path, close Safety door, adjust Drawing lubrication oil, Coolant water, Steam, Compressed air.

4-3. Diameter, Voltage, Current, Speed linkage

Our machine is made according to use`s elongation requirement, nothing to do with copper wire.

Annealing voltage & Speed

4-4. Maintenance

Lubricate all the parts, make sure all the wheels and capstans run flexible.

After working 1000hours, clean all the bearing and change new lubrication oil.

Annealing contact rings are consuming parts, after using for certain time, when annealing, will have sparks, which means you need change new rings.

There are carbon brushes on the back side of the annealer machine, need change accordingly.
